Project Smart home
In order to get as much information as possible from every room in the house - I created this multi sensors station connected to Home Assistant via ESPHome.io
Station is based on ESP 8266 chip and cheap sensors from China.
Input:
- Ambient light sensor- BH1750
- Humidity/temp sensor - DHT10
- Smoke detector - MQ-2
- binary sensor - magnetic switch (window/door)
- PIR binary sensor
Output:
- buzzer

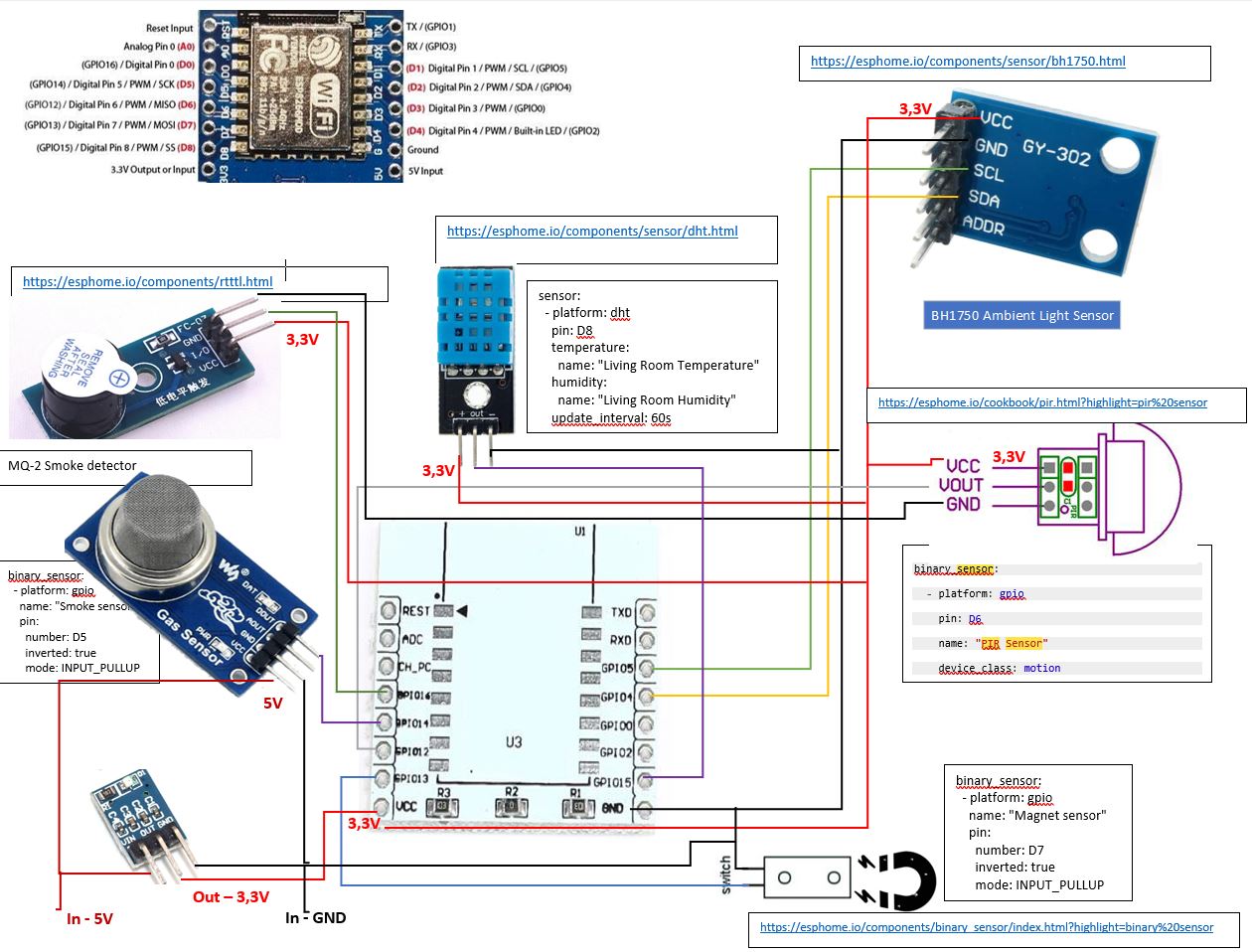

https://getsimple.raiv.cc/data/uploads/iot/alarm_schema.pdf
